Holuhraun lava in daylight. Screenshot from a video by Kristinn Ingi Pétursson,
Yesterday, the Bardarbunga crisis celebrated its first month. As our readers have already remarked, the IMO has put out an update that summarises the earthquake data over the past month. In all, some 25,000 earthquakes have been registered by the automated system of which no less than 5,900 have been manually checked by a seismologist. That is approximately 200 earthquakes per day on average or eight quakes per hour, during “rush hour”, quite a few more. This is really quite a staggering achievement by the IMO!
Summary of earthquakes from August 16th to Sptember 15th (IMO)
Yesterday in an interview carried by Icelandic News Agency MBL , Volcanologist Ármann Höskuldsson said that the Holuhraun eruption is abating. This could indicate that the first scenario might be about to happen: “Subsidence of the Bárðarbunga caldera stops and the eruption on Holuhraun declines gradually.” However, at this stage no such conclusion can be drawn as the subsidence continues even if the eruption may seem to be in decline. However, the IMO today claims that “Measurements show that the lava field in Holuhraun continues to expand. There are no signs of decreasing lava production” and ” The subsidence of the Bardarbunga caldera continues with the rate of about 50 cm over the last 24 hours.”
If we look at what could possibly be one of the best clues available, the chemical composition of the lava, there are some interesting comparisons to be drawn with those for the 2010 Eyjafjallajökull. First, Holuhraun as released by the IMO on Friday, September 5th:
Chemical analysis of lava from the Holuhraun eruption (NordVulk)
The four first samples in the table were taken from the lava erupted in Phase II of the current Holuhraun eruption. The last sample (HRW-04) is from pre-existing Holuhraun lava, i.e. from previous eruptions in the area. The key elements to look at are SiO2 and MgO. The percentage of SiO2 indicates how evolved the magma is. Juvenile, basaltic magma usually has an SiO2 content of around 45%. The first of the evolved magmas, Andesite, usually has an SiO2 content in the 55% – 60% range. The second, MgO, can give an indication as to how fresh from the astenosphere/mantle the magma is. However, this seems to vary slightly from location to location. Now on to the Eyjafjallajökull samples from 2010:
Chemical analysis of lava from the 2010 eruptions at Fimvörduhals and Eyjafjallajökull (Niels Oskarsson/NordVulk)
As is readily apparent, the SiO2 content of the first fissure eruption at Fimvörduhals was substantially lower and consistent with juvenile basalt whereas the samples taken from the main eruption were basaltic-andesitic to andesitic in composition. The reverse is true for the MgO content, indicating that the Fimvörduhals eruption consisted of juvenile magma more or less directly from the astenosphere/mantle.
Volcanologists have mentioned the likelihood that the magma erupted this far at Holuhraun may be more evolved magmas that have been pushed out by the initial intrusion and subsequent continuing collapse at Bardarbunga, something that the above chemical analysis may support. Also, the report by Guðmundur Heiðar Guðfinnsson and Sigurður Jakobsson published by the IMO on Monday, September 8th, suggest this may be the case as they identify the magma as partially being “olivine-normative tholeiite” (0-5 wt% ol). The SEM analysis of some samples indicates that the (Holuhraun) erupted magma contains minor amount of plagioclase phenocrysts (<1%) and even scarcer olivine phenocrysts and they conclude that the lack of Fe-Ti oxides suggests that the samples had quenched before Fe-Ti oxides could form. As this is evidence of evolved magmas, it supports the conclusion that the magmas erupted this far are older and evolved magmas from the Bardarbunga magma reservoir. This view has been confirmed by the foremost theoretical volcanologist, Professor Haraldur Sigurðsson, on http://vulkan.blog.is/blog/vulkan/
Furthermore, the HRW-04 sample from a previous, older eruption is very similar to the recent ones. This indicates that the current modus operandi is not something new, that at least one previous eruption has followed the same pattern of a new intrusion pushing out older magmas from underneath Bardarbunga. This may be heartening news as the present subsidence of the caldera then most likely also is not a new feature, that it has happened at least once before without the entire system going into a full-scale caldera eruption and thus, that there is an improved chance of this not happening now. To judge by the current depth of the caldera, this must have happened several times previously. The salient question is if this time, the caldera will collapse far enough to trigger the ultimately inevitable great eruption.
Thus the long wait begins. Just how long is anyone’s guess.
Henrik (a.k.a. Pyrite)
IMPORTANT NOTICE:
Only the IMO and the Allmannavarnir can issue volcanic warnings and only London VAAC can issue Flight Warnings.
WARNING:
We know a few wish to go there right now. But, remember to stay on the where the wind is not blowing, this is a very gassy eruption high in SO2. Even one breath of the exhaust could kill you, so please respect any and all warnings from the appropriate Icelandic authorities!
/
VolcanoCafé
Mila’s cams are back and eruption continues unabated. Lots of steam from interaction lava/water. Cool!
Hey you all need the new “GetSmart” App for Mila Cam
GPS bounce problems solved……
Well it seems that the periodic 5+ eq in Iceland it is overdue for a change.
So much steam rising from where the lava meets the river today. I hope we get to see some new pictures soon. 🙂
Could someone explain why and or how the caldera seems to inflate or rise? And when it rises/inflates, it does so for hours at a time. I know that the more reliable is the blue line, and only over a period of time. But, the areas of this graph that I am talking about are either from 2 days ago, yesterday, or several hours. I have arrows pointing to them. Thank you. Perhaps this was discussed and I missed it….if so, sorry could you post a link to that discussion. Thanks again. Source IMO.
We may be over-reading the GPS readings. It’s just one instrument, and it’s subject to noise and error. Plus, it’s sitting on a glacier 700 meters above the actual rock of the caldera. Maybe ice shifting from caldera rim down towards the bowl might push the unit up a few cm at odd times. Who knows.
I’m thinking the recent period of hugely erratic readings (the kangaroo on crystal meth period) might just have been from satellite GPS waves bouncing around and between rain/snow/clouds, confusing the instrument. The coincidence of dense fog with these erratic readings might not have been a coincidence.
I am afraid I have no idea of the answer to this question but I would rule out the weather because the fog has been around for days but the oscillations on the chart have been worst in roughly the last 18 hours.
Good point. One would hope such GPS units are designed to avoid interference from mere weather.
Dang. We need a webcam aimed at the GPS unit !!
Maybe the sharks were playing badminton with the GPS unit. 😉
Hi. I’ have been writing some posts on my blog.
http://lenwar eenglish.wordpress.com/I think you should all read them and do something about it.
But I will highlight a datum: The tides pace in Hofn and Reykjavik seam to have something to do with the time the earthquakes occur, and it makes a lot of sense, which you all can read under the tags Bardarbunga, global issues, climate change, global warming.
No thanks, we deal in science, not mumbo jumbo and wishful thinking. But thanks for the offer… …strewth!
Not sure if linked already (apologies if so): an article about Hadean earth using evidence from zircon from Icelandic volcanoes:
http://io9.com/more-evidence-that-early-earth-was-not-a-complete-hellh-1635821498
A new summary map. This time, instead of laboriously tracing around a lava field diagram then transferring the tracing to the map, I tried out the “overlay image” function in Google Earth and it actually worked for me! 🙂 (I’ve tried this before with less than stellar results so I was pleasantly surprised this time 🙂 ).
You make me happy 😀
Any chance that the confirmed cauldrons can be mapped onto their rough location ?
You make me very happy too. Now if someone could move the Mila cameras to the brow of the hill so we could see the river and lava dam, I’d be ecstatic.
@Geyser Söze/Geyser Trollze/Rhyolithic Troll/Moron:
You are strongly advised to check your email.
/Administrators
Be advised, all comments to this notification will be deleted.
Interesting reading….
Environmental loading effects on GPS time series.
Metsähovi is a permanent GPS-station in Finland. It is situated on the south coast, with the distance to the
Baltic Sea being only 15 km. The effect of tidal loading is small since its distance to the ocean is 800 – 1000 km, therefore the other loading effects can be seen more clearly. We have studied the effects of non tidal loading of the Baltic Sea and loading caused by atmospheric pressure and water storages on solid Earth in the height time series of GPS. When all known factors are taken into account, the variance in the GPS height time series diminishes up to 31%. Regression coefficients for the different factors were found to be –0.2 mm/hPa for the local air pressure, -9 mm/m for the nearby tide gauge recording and -0.05 mm/mm for the total water storage of Finland. The effect of local aquifers and global soil moisture need to be studied more carefully, because all the water storages correlate and give therefore similar results.
Click to access Environmental%20loading%20effect%20on%20GPS%20Tervo_et_al.pdf
Also an update on the 3-in-1 map:
♦ Blue lines indicate a direct correlation between a ‘quake and a drop in GPS; green lines are from M5+ quakes which appear to have no direct effect on the GPS, and blue dash lines are from M4+ quakes which occurred at the beginning of a more gradual decline in GPS.
♦ Indicator lines (blue, green and dashed) have a gap where they meet the GPS lines in order that the trend of the latter is not obscured by the former.
♦ I thank avalonlightphotoart for the original idea of plotting the larger earthquakes against the GPS graph, and all those who suggested including both the depth of ‘quakes and their compass locations. Depth and location are recorded below those quakes which appear to have more significance with reference to the GPS graph.
Excellent graph … thank you 😊 …Bardy seems to have been far more restless the last 36+/- hours again. Plus side she seems to be following a nice steady linear rate of subsidence which gives some source of comfort for now. Still to see if a semi rhythmic pattern establishes to her earthquakes again as we saw early Sept. (for give me ….armchair amateur volcoholic -all talk no trousers!)
.. keeping fingers and toes crossed for nothing spectacular to happen… after the excitement of todays Scotland staying as part of GB (phew!!) we have the trip home for the Ryder Cup and then a flight back down to Africa…
Really excellent work, collecting this information in a way that correlates everything. Much appreciated.
Now, if I could only *understand* all this….
It seems to me as big drops are in correlation with larger EQ in the last five days than was before – resently 5,3/5,4 versus 4.7/4.9 before. Just stating the obvious. Not sure what that would mean if anything.

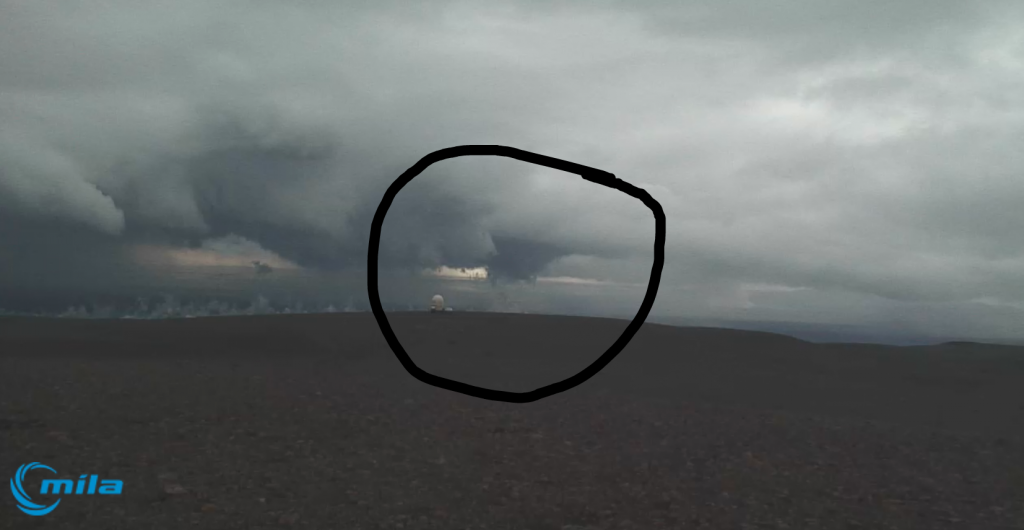

Sorry, cloud-spotter at it again: is this a giant tornado? I’ve been watching it for about 20 minutes & it hasn’t moved – though it probably will have before I manage to post a picture!
